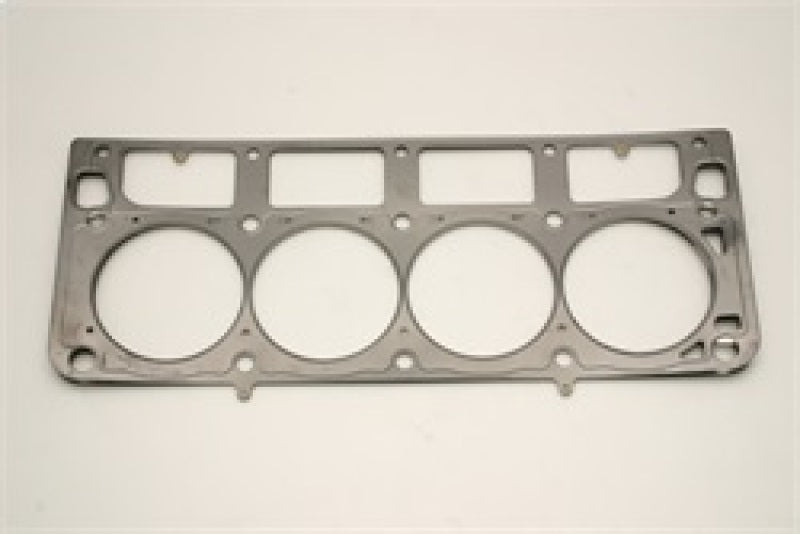

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.051". With MID Sleeves. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

This Part Fits:

Year	Make	Model	Submodel
2001-2004	Avanti	II	Base
2004-2007	Cadillac	CTS	V
2007-2008,2010-2014	Cadillac	Escalade	Base
2011-2014	Cadillac	Escalade	Luxury
2008,2010-2014	Cadillac	Escalade	Platinum
2011-2014	Cadillac	Escalade	Premium
2007-2008,2010-2014	Cadillac	Escalade ESV	Base
2011-2014	Cadillac	Escalade ESV	Luxury
2008,2010-2014	Cadillac	Escalade ESV	Platinum
2011-2014	Cadillac	Escalade ESV	Premium
2007-2008,2010-2013	Cadillac	Escalade EXT	Base
2011-2013	Cadillac	Escalade EXT	Luxury
2011-2013	Cadillac	Escalade EXT	Premium
2013	Chevrolet	Avalanche	Black Diamond LS
2013	Chevrolet	Avalanche	Black Diamond LT
2013	Chevrolet	Avalanche	Black Diamond LTZ
2007-2012	Chevrolet	Avalanche	LS
2007-2012	Chevrolet	Avalanche	LT
2007-2012	Chevrolet	Avalanche	LTZ
1997	Chevrolet	C1500	Base
1997-1998	Chevrolet	C1500	Cheyenne
1999	Chevrolet	C1500	LS
1997-1998	Chevrolet	C1500	Silverado
1997-1998	Chevrolet	C1500	WT
1997-1999	Chevrolet	C1500 Suburban	Base
1997-1999	Chevrolet	C1500 Suburban	LS
1997	Chevrolet	C1500 Suburban	LT
1997,1999-2000	Chevrolet	C2500	Base
1997-1998	Chevrolet	C2500	Cheyenne
1999-2000	Chevrolet	C2500	LS
1997-1998	Chevrolet	C2500	Silverado
1998	Chevrolet	C2500	WT
1997-1999	Chevrolet	C2500 Suburban	Base
1997-1999	Chevrolet	C2500 Suburban	LS
1997	Chevrolet	C2500 Suburban	LT
1997,1999-2000	Chevrolet	C3500	Base
1997-1998	Chevrolet	C3500	Cheyenne
1999-2000	Chevrolet	C3500	LS
1997-1998	Chevrolet	C3500	Silverado
2010-2015	Chevrolet	Camaro	SS
1997-2002	Chevrolet	Camaro	Z28
1998-2002	Chevrolet	Camaro	Z28 SS
2011-2016	Chevrolet	Caprice	PPV
2003	Chevrolet	Corvette	50th Anniversary Edition
2003	Chevrolet	Corvette	50th Anniversary Edition Pace Car
1997-2013	Chevrolet	Corvette	Base
2010-2013	Chevrolet	Corvette	Grand Sport
1998	Chevrolet	Corvette	Indianapolis 500 Pace Car
2001-2004	Chevrolet	Corvette	Z06
1997-2002	Chevrolet	Express 1500	Base
1997-2002	Chevrolet	Express 1500	LS
1997-2002	Chevrolet	Express 2500	Base
1997-2002	Chevrolet	Express 2500	LS
1997-2002	Chevrolet	Express 3500	Base
1997-2002	Chevrolet	Express 3500	LS
1997	Chevrolet	K1500	Base
1997-1998	Chevrolet	K1500	Cheyenne
1999	Chevrolet	K1500	LS
1997-1998	Chevrolet	K1500	Silverado
1997-1998	Chevrolet	K1500	WT
1997-1999	Chevrolet	K1500 Suburban	Base
1997-1999	Chevrolet	K1500 Suburban	LS
1997	Chevrolet	K1500 Suburban	LT
1997,1999-2000	Chevrolet	K2500	Base
1997-1998	Chevrolet	K2500	Cheyenne
1999-2000	Chevrolet	K2500	LS
1997-1998	Chevrolet	K2500	Silverado
1998	Chevrolet	K2500	WT
1997-1999	Chevrolet	K2500 Suburban	Base
1997-1999	Chevrolet	K2500 Suburban	LS
1997	Chevrolet	K2500 Suburban	LT
1997,1999-2000	Chevrolet	K3500	Base
1997-1998	Chevrolet	K3500	Cheyenne
1999-2000	Chevrolet	K3500	LS
1997-1998	Chevrolet	K3500	Silverado
1997-1999	Chevrolet	P30	Base
2010-2013	Chevrolet	Silverado 1500	LS
2007-2013	Chevrolet	Silverado 1500	LT
2007-2013	Chevrolet	Silverado 1500	LTZ
2007-2013	Chevrolet	Silverado 1500	WT
2010-2013	Chevrolet	Silverado 1500	XFE
2014-2017	Chevrolet	SS	Base
2005-2006	Chevrolet	SSR	Base
2007-2014	Chevrolet	Suburban 1500	LS
2007-2014	Chevrolet	Suburban 1500	LT
2007-2014	Chevrolet	Suburban 1500	LTZ
2007	Chevrolet	Suburban 1500	Z71
1997-1999	Chevrolet	Tahoe	Base
2000	Chevrolet	Tahoe	Limited
1997-1999,2007-2014	Chevrolet	Tahoe	LS
1997-1999,2007-2014	Chevrolet	Tahoe	LT
2007-2014	Chevrolet	Tahoe	LTZ
2012-2014	Chevrolet	Tahoe	PPV
2012-2014	Chevrolet	Tahoe	SSV
2000	Chevrolet	Tahoe	Z71
2006-2009	Chevrolet	Trailblazer	SS
2007-2008	GMC	Sierra 1500	Denali
2010-2013	GMC	Sierra 1500	SL
2007-2013	GMC	Sierra 1500	SLE
2007-2013	GMC	Sierra 1500	SLT
2007-2013	GMC	Sierra 1500	WT
2010-2013	GMC	Sierra 1500	XFE
2007-2008,2010-2014	GMC	Yukon	Denali
2007-2014	GMC	Yukon	SLE
2007-2014	GMC	Yukon	SLT
2007-2008,2010-2014	GMC	Yukon XL 1500	Denali
2007-2014	GMC	Yukon XL 1500	SLE
2007-2014	GMC	Yukon XL 1500	SLT
2008	Hummer	H2	Base
1997-2002	Pontiac	Firebird	Formula
1997-2002	Pontiac	Firebird	Trans Am
2008-2009	Pontiac	G8	GT
2009	Pontiac	G8	GXP
2004-2006	Pontiac	GTO	Base
