Key Features

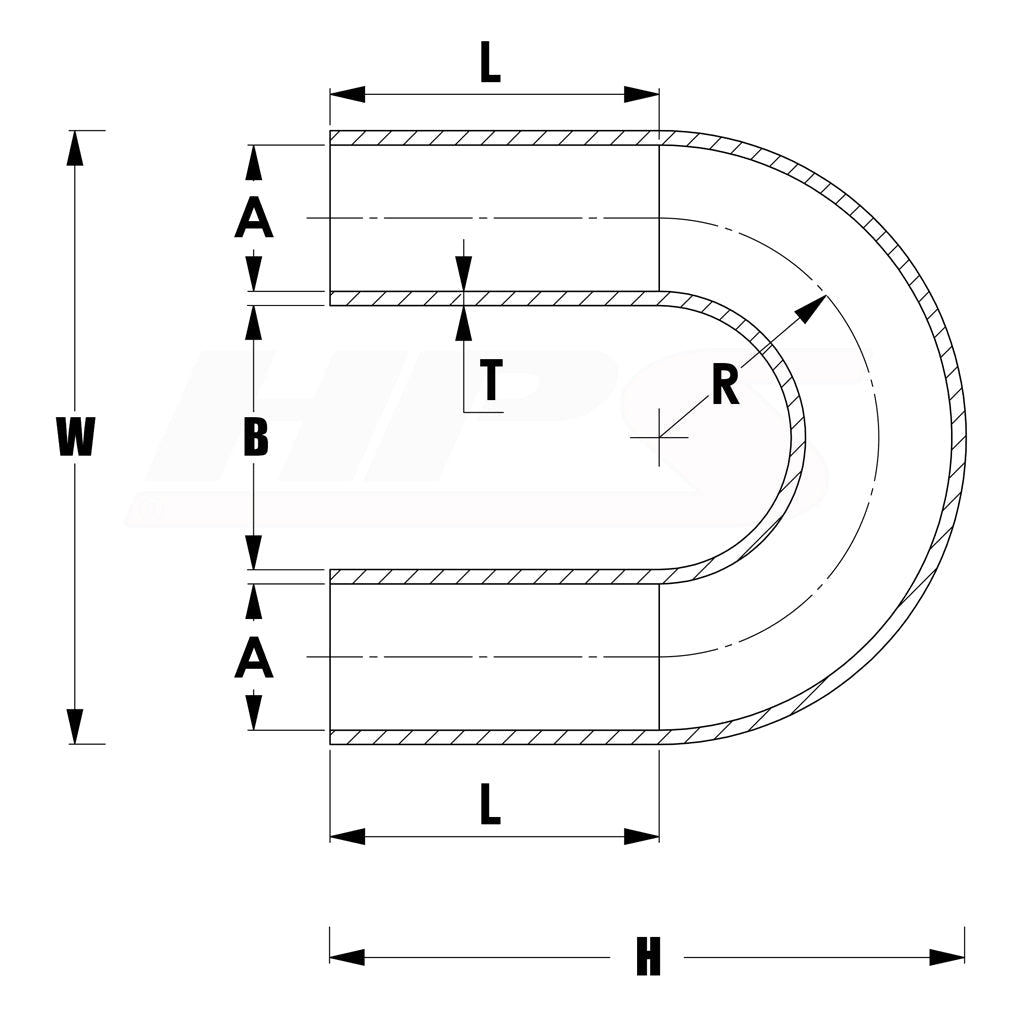

Inside Diameter: 2.38" (60mm). Outside Diameter: 2 3/4" (70mm). Leg Length on each side: 4-1/2". Center Line Radius: 3-5/8".
Outer Width (W): 10". Inside Width (B): 4-1/4". Overall Height: 9-3/4".
Meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications
Great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system
Made of 4-ply High Temp Reinforced Silicone. UV and ozone resistant. Silicone hose is compatible with water and coolant, however, it is NOT compatible with fuel or oil

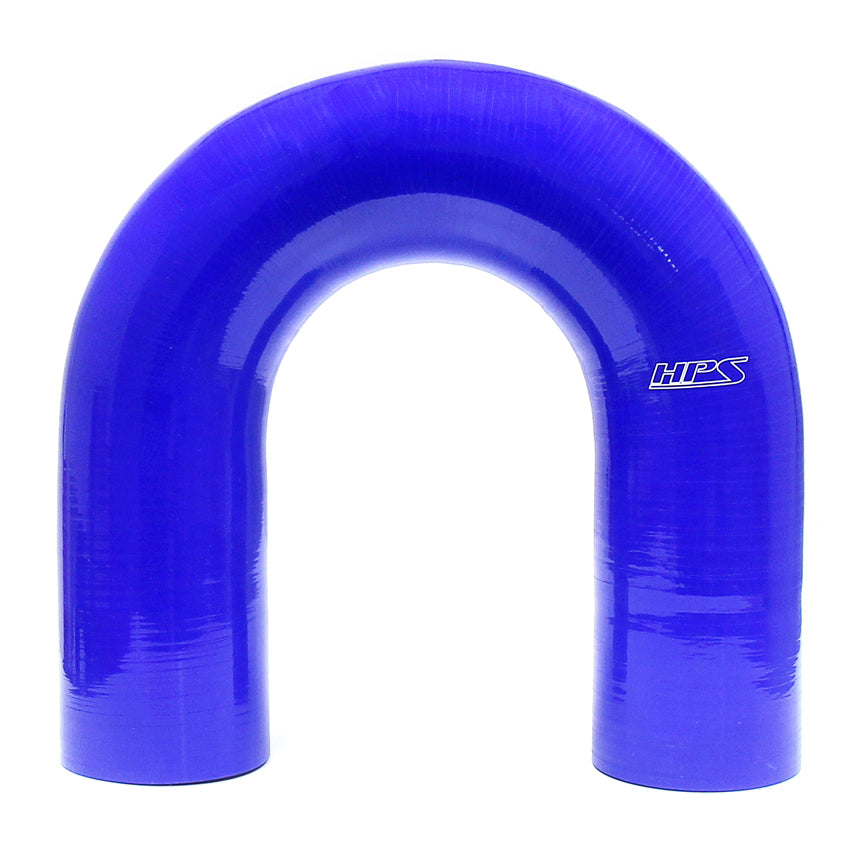

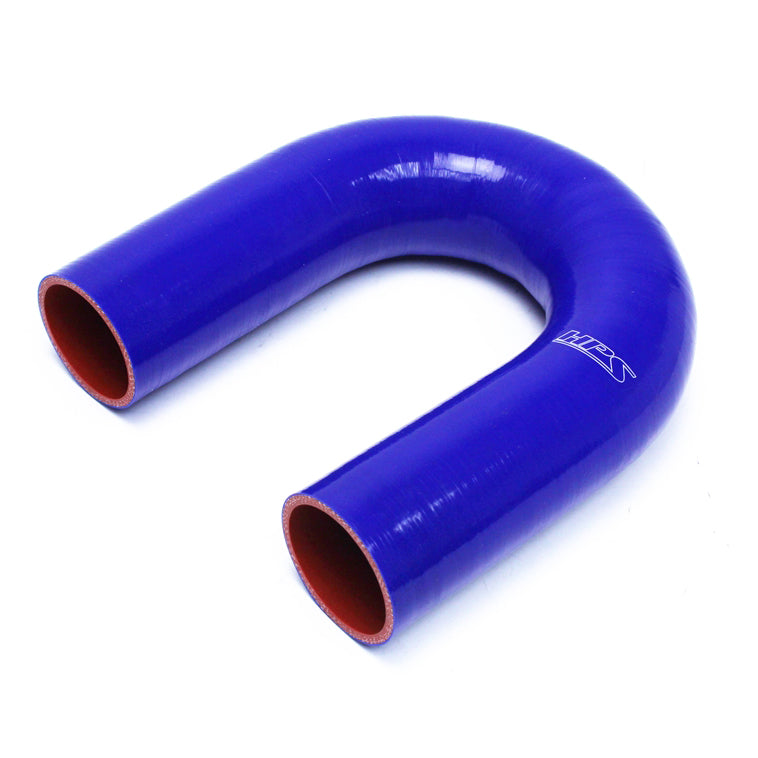

HPS 2-3/8" (60mm) High Temp 4-ply Reinforced Silicone 180 Degree U Bend Elbow Coupler Hose meet and exceed SAEJ20 industry standards, ideal for heavy duty pressure connections and provides excellent resistance for high temperature applications. HPS performance silicone 180 Degree U Bend Elbow Coupler Hose is designed and engineerd to meet high performance requirements specified in various industry standards, therefore make it great for marine and industrial use, custom turbo or intercooler piping fabrication, DIY intake or radiator cooling system. Technical Specification: Product Type: Silicone 180 Degree U Bend Elbow Coupler Hose. Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C). Reinforced Layer: 4-ply. Hose Inside Diameter: 2.38" (60mm). Hose Outside Diameter: 2 3/4" (70mm). Leg Length on each side: 4-1/2". Center Line Radius: 3-5/8". Outer Width (W): 10". Inside Width (B): 4-1/4". Overall Height: 9-3/4". Wall Thickness: 4.5mm (+/- 0.5mm). Color: Blue. UV and ozone resistant. Remark: Silicone hose is compatible with water and coolant, however, it is NOT compatible with fuel or oil.
