Description

Installation Instructions       Operation Instructions

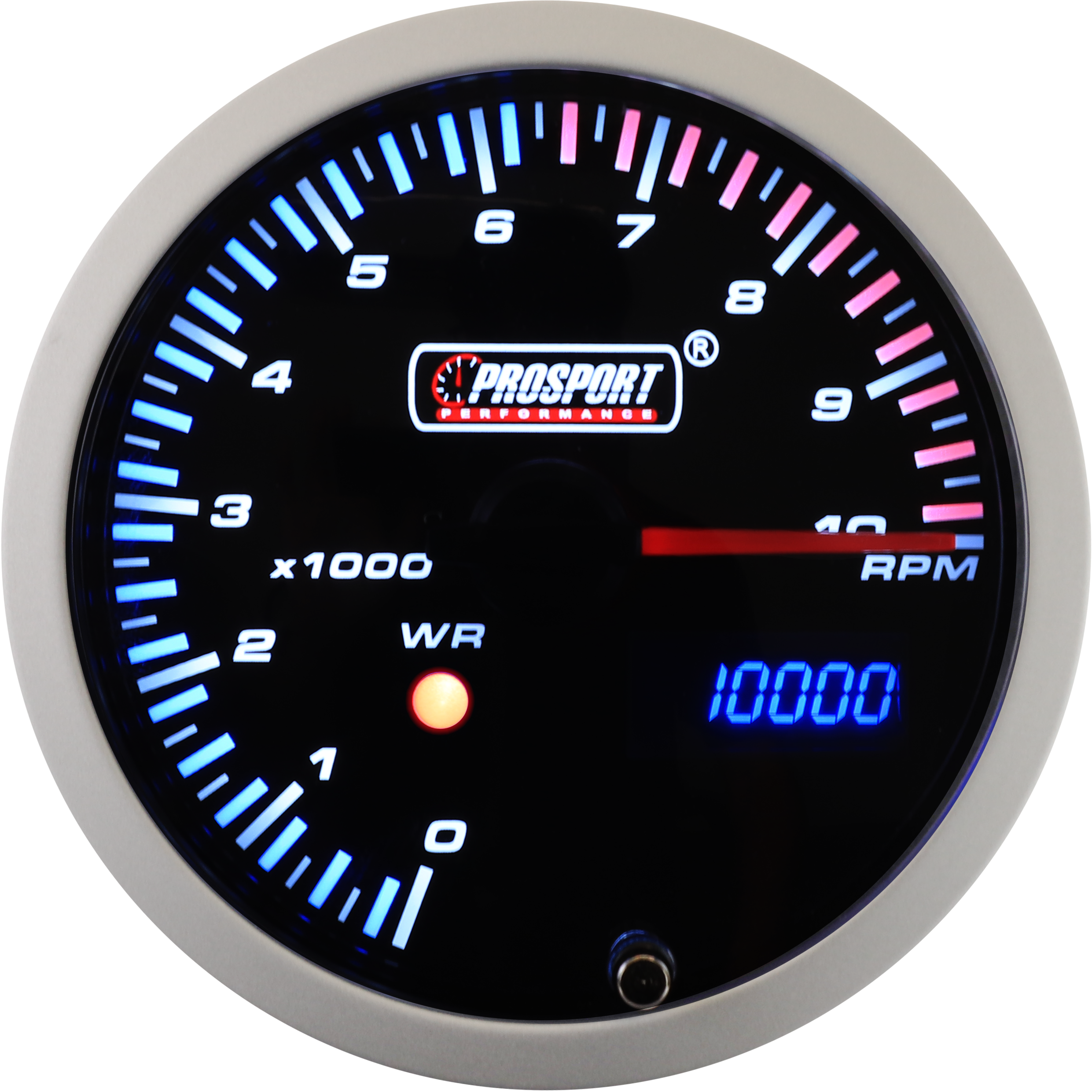

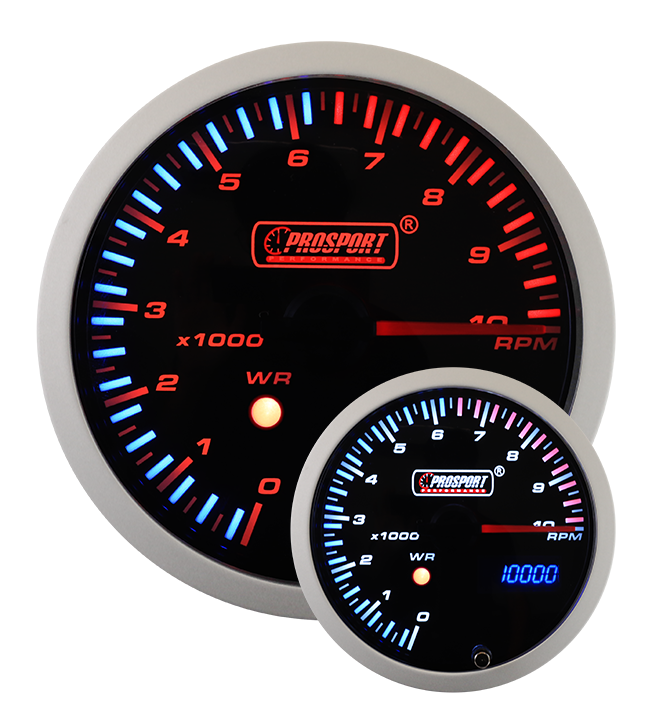

85mm Tachometer With Warning (3 1/3") - Stand alone
  • Featuring a 0-11,000 RPM range with a 270° scale.

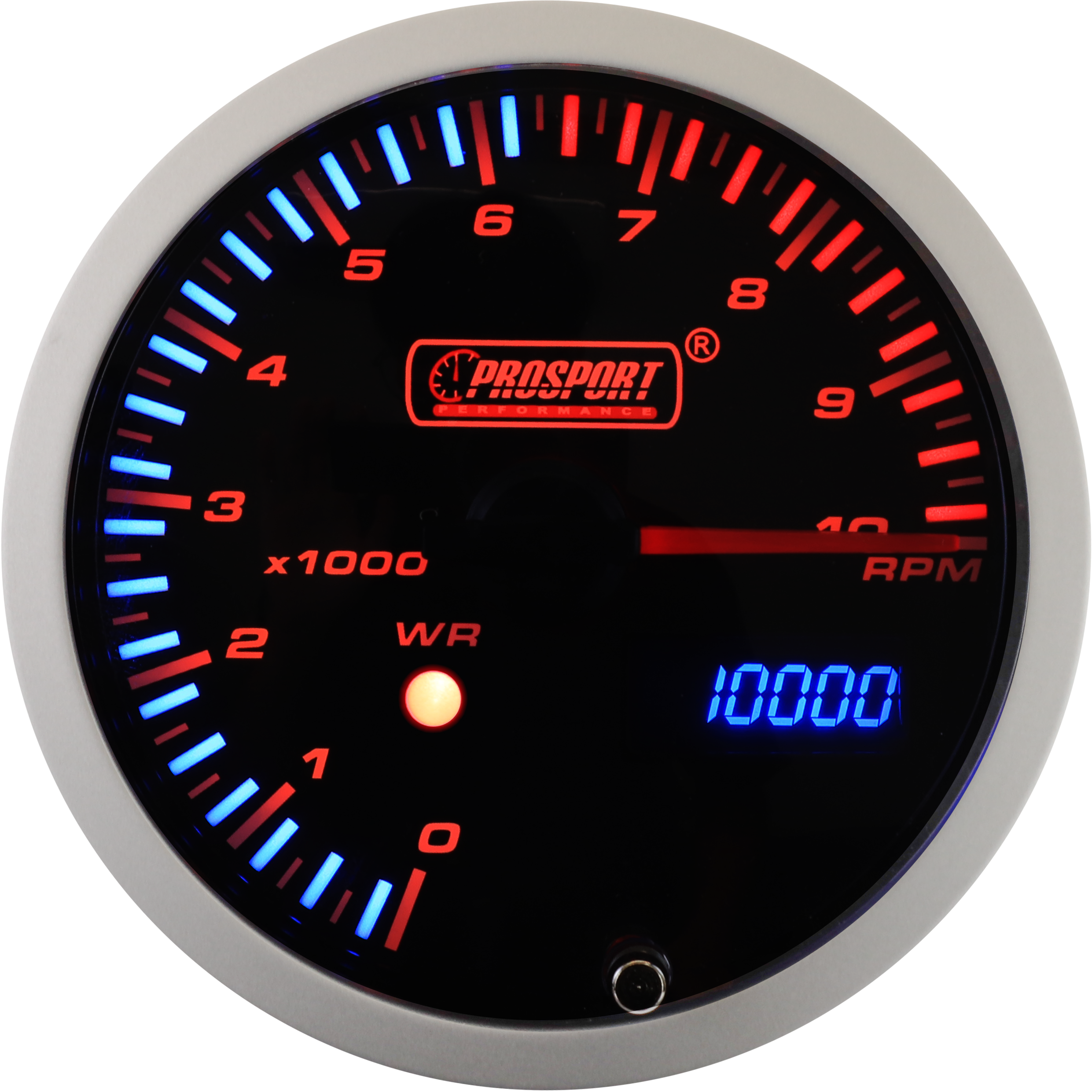

  • 2 color display (Amber/ White)
  • Opening & Closing ceremony when the gauge is turned on/off.
  • Dimmable
  • Fully programmable warning feature
  • Daisy chain system
  • Self diagnosis of sensors or short circuits
  • In- Dash mounting -Includes U bracket
With its pinpoint accuracy and lots of features this tach is a sweet deal!

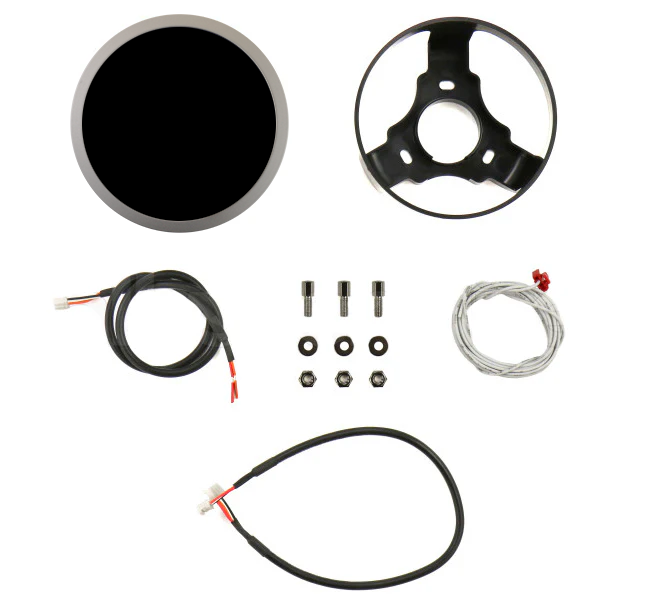

(Includes Mounting Hardware, wiring and Instructions)
*Note: this is an electronic tachometer and thus requires a square wave electronic signal. You will need a 12v square wave tach converter for pre 2000 engines or any motor with a distributor. We usually recommend part MSD 8132 but please do the research for your specific setup. This Tachometer is designed for use with 1/2/3/4/5/6/7/8/9 cylinder gasoline engines.
Prosport Gauges

3-1/3" JDM Electrical Tachometer With Peak/Warning

SKU: 338JDMTA
$284.00 CAD
Shipping calculated at checkout.
3-1/3" JDM Electrical Tachometer With Peak/Warning
$284.00 CAD
